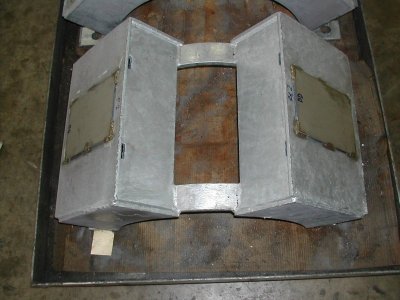

Insulated Supports (Figures 4500 – 4800)

Insulated pipe supports are designed to prevent direct heat transfer between pipes and their supports. Thus, they reduce heat loss due to conduction at each support. They serve the following purposes: Carry the load and allow necessary movement at each suppose point, provide insulation in the support area where the regular pipe insulation cannot be installed and minimize the cost of field installation by reducing installation time. The supports are not welded to the pipe and each unit is shipped completely assembled (except for the riser supports and anchor supports, both of which require some welding).

Acid Plants
Ammonia Plant
Chemical Plant
Clean Fuels

Cogeneration Plant
Cold / Cryogenc Service
Commercial
Electric Plant

Energy Facility
Ethylene Plant
Heat Recovery Steam Generation Plant
Hospital

LLDPE Chemical Plant
LNG Plant
MTBE Plant
See All

See More Images

Pipe Support Field Inspection, Installation & Maintenance

Pipe Support Engineering & Design

Pipe Clamp Design, Application & Installation Webinar

See More Videos

[post_listing_data post_name=’resource’ sorting=’no’ texonomy_name=’post_tag’ term_name=’faq-insulated-supports’ display_view=’second-view’]
More FAQs…

Insulation Chart

Size Range: For use with 1/2″ through 72″, most designs. insulation thickness of 1″. 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″, 4″ and larger sizes where specified.
How to Size: Refer to “Insulation Chart” below for Sizing the Insulation Material.

Ordering: Specify figure number, pipe size, insulation thickness, and insulating material

Example:
Fig. 4700-4-3-B
• 4700 = Type of Insulated Shoe (cold)
• 4 = Nominal Pipe Size
• 3= Insulation Thickness
• B = Insulation Material (Micarta)

NOMINAL INSULATION THICKNESS (in.)INSULATION O.D. (in.)APPROX. INSULATION THICKNESS (in.)

Pipe size: 1/2" (O.840 O.D.)
12 7/81
1 1/241 9/16
252 1/16
2 1/26 5/82 7/8
37 5/83 3/8
3 1/28 5/83 7/8
49 5/84 3/8

Pipe size: 3/4" (1.050 O.D.)
12 7/87/8
1 1/241 7/16
251 15/16
2 1/26 5/82 3/4
37 5/83 1/4
3 1/28 5/83 3/4
49 5/84 1/4

Pipe size: 1" (1.315 O.D.)
13 1/21 1/16
1 1/24 1/21 9/16
25 9/162 1/8
2 1/26 5/82 5/8
37 5/83 1/8
3 1/28 5/83 5/8
49 5/84 1/8

Pipe size: 1 1/4" (1.66 O.D.)
13 1/215/16
1 1/251 11/16
25 9/161 15/16
2 1/26 5/82 1/2
37 5/83
3 1/28 5/83 1/2
49 5/84

Pipe size: 1 1/2" (1.90 O.D.)
141 1/16
1 1/251 9/16
26 5/82 3/8
2 1/27 5/82 7/8
38 5/83 3/8
3 1/29 5/83 7/8
410 3/44 7/16

Pipe size: 2" (2 3/8" O.D.)
14 1/21 1/16
1 1/25 9/161 9/16
26 5/82 1/8
2 1/27 5/82 5/8
38 5/83 1/8
3 1/29 5/83 5/8
410 3/44 3/16

Pipe size: 2 1/2" (2 7/8" O.D.)
151 1/16
1 1/26 5/81 7/8
27 5/82 3/8
2 1/28 5/82 7/8
39 5/83 3/8
3 1/210 3/43 15/16
411 3/44 7/16

Pipe size: 3" (3 1/2" O.D.)
15 9/161
1 1/26 5/81 9/16
27 5/82 1/16
2 1/28 5/82 9/16
39 5/83 1/16
3 1/210 3/43 5/8
411 3/44 1/8

Pipe size: 3 1/2" (4" O.D.)
16 5/81 5/16
1 1/27 5/81 13/16
28 5/82 5/16
2 1/29 5/82 13/16
310 3/43 3/8
3 1/211 3/43 7/8
412 3/44 3/8

Pipe size: 4" (4 1/2" O.D.)
16 5/81 1/16
1 1/27 5/81 9/16
28 5/82 1/16
2 1/29 5/82 9/16
310 3/43 1/8
3 1/211 3/43 5/8
412 3/44 1/8

Pipe size: 4 1/2" (5" O.D.)
17 5/81 5/16
1 1/28 5/81 13/16
29 5/82 5/16
2 1/210 3/42 7/8
311 3/43 3/8
3 1/212 3/43 7/8
4144 1/2

Pipe size: 5" (5 9/16" O.D.)
17 5/81
1 1/28 5/81 1/2
29 5/82
2 1/210 3/42 9/16
311 3/43 1/16
3 1/212 3/43 9/16
4144 3/16

Pipe size: 6" (6 5/8" O.D.)
18 5/815/16
1 1/29 5/81 7/16
210 3/42
2 1/211 3/42 1/2
312 3/43
3 1/2143 5/8
4154 1/8

Pipe size: 7" (7 5/8" O.D.)
19 5/81
1 1/210 3/41 1/2
211 3/42
2 1/212 3/42 1/2
3143 1/8
3 1/2153 5/8
4164 1/8

Pipe size: 8" (8 5/8" O.D.)
110 3/41 1/16
1 1/211 3/41 1/2
212 3/42
2 1/2142 5/8
3153 1/8
3 1/2163 5/8
4174 1/8

Pipe size: 9" (9 5/8" O.D.)
111 3/41 1/16
1 1/212 3/41 1/2
2142
2 1/2152 5/8
3163 1/8
3 1/2173 5/8
4184 1/8

Pipe size: 10" (10 3/4" O.D.)
112 3/41
1 1/2141 9/16
2152 1/16
2 1/2162 9/16
3173 1/16
3 1/2183 9/16
4194 1/16

Pipe size: 11" (11 3/4" O.D.)
1141 1/8
1 1/2151 9/16
2162 1/16
2 1/2172 9/16
3183 1/16
3 1/2193 9/16
4204 1/16

Pipe size: 12" (12 3/4" O.D.)
1151 1/8
1 1/2161 9/16
2172 1/16
2 1/2182 9/16
3193 1/16
3 1/2203 9/16
4214 1/16

Pipe size: 14" (14" O.D.)
1162
1 1/2171 7/16
2181 15/16
2 1/2192 7/16
3202 15/16
3 1/2213 7/16
4223 15/16
Large sizes, insulation O.D. are in 1" increments.

Insulation thicknesses through 36" same as nominal.

All dimensions rounded to the nearest 1/16".
